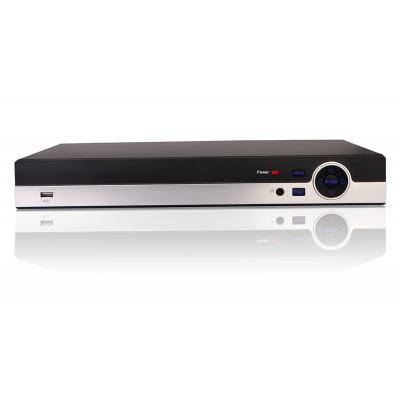

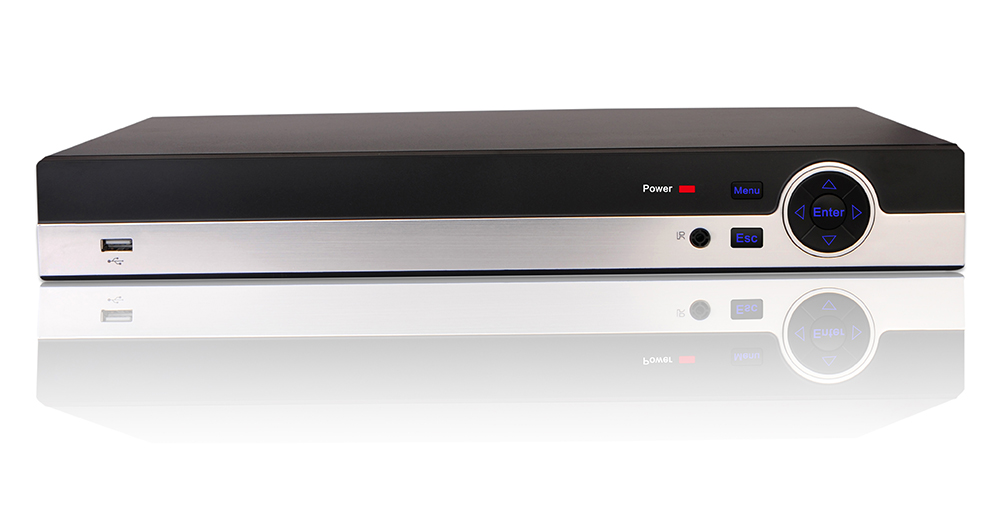

Name: Full series 4ch/8ch/16ch XVR

◇Video Input/Output: BNC 4CH/8CH/16CH In/ VGA 1CH Out/HDMI 1CH Out

◇Audio Input/Output: 4CH/8CH: RCA 4CH In/ 1CH out; 16CH: RCA 2CH In/ 1CH out

◇Compression Method: H.264

◇HD (AHD/CVI/TVI): Full series for your choices

4*1080N@25fps

8*1080N@15fps

16*1080N@15fps

4*4M-N@12fps

8*4M-N@10fps

16*4M-N@10fps

4*1080P@15fps

8*1080P@12fps

16*1080P@20fps

4*4MP@8fps

8*4MP@8fps

16*4MP@8fps

4*5MP@20fps

8*5MP@20fps

Analog: 960H/D1, PAL@1fps-25fps adjustable; NTSC@1fps-30fps adjustable;

IPC: 5M/4M/3M/1080P/960P/720P/etc, PAL@1fps-25fps adjustable; NTSC@1fps-30fps adjustable;

◇Preview resolution: 1080P/720P/960H

◇Multi-channel playback: 4CH (All HD Channel Type)

◇Hexaplex operation simultaneously: Live, Recording, Playback, Network Operating

◇Static, Dynamic IP and DDNS, P2P, Support IE and Special Client Software

◇PTZ, 2×USB, 1xRJ45, 1xIR Controller

◇2 SATA Hard Disk Interface

◇Backup: USB2.0 (such as U disk, USB Drive) and network

◇Support remote view by Mobilephone (iPhone, Android)

◇Power Adaptor: DC 12V2.5A

◇Dimensions (L×W×H): 310*210*45(mm)
