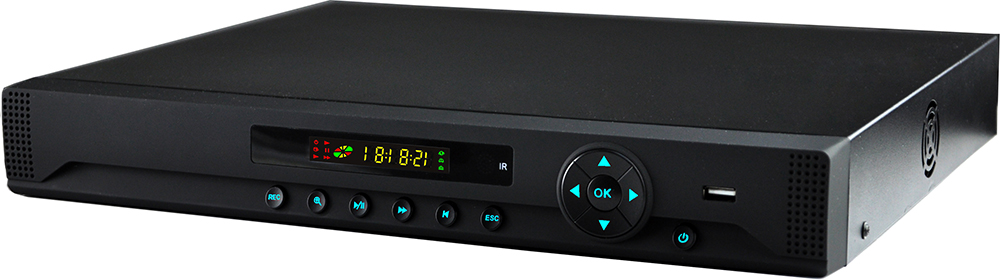

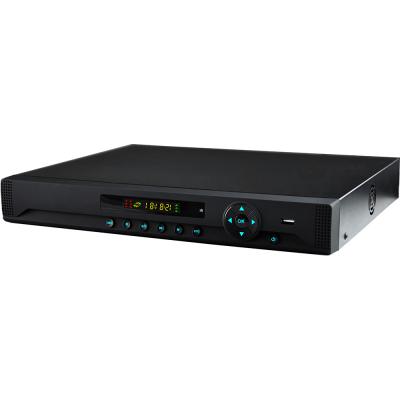

Name: 32ch XVR

DIY Video Input: HD includes AHD, HD-CVI, HD-TVI

HD: Max 32CH@25fps / IPC: Max 32CH@30fps / Analog: Max 32CH@30fps

HDMI Output: 4K (3840 × 2160)/1920×1080/1280×1024/1280×720/1024×768

VGA Output: 1920×1080/1280×1024/1280×720/1024x768

CVBS Output: 720x560

Audio Input/Output: RCA 6CH In/ 1CH Out

Compression Method: H.264

HD:

32*1080N@25fps

32*4MP@8fps

16*5MP@20fps

IPC: 8MP/6MP/5MP/4MP/3MP/2MP/1MP, etc  (Total incoming bandwidth ≤160M),

PAL every channel 1fps-25fps adjustable; NTSC every channel 1fps-30fps adjustable;

Preview resolution: 1080P/720P

Playback: Support single channel/thirty-two channels mode

Hexaplex operation simultaneously: Live, Recording, Playback, Network Operating

Static, Dynamic IP and DDNS, P2P, Support Internet Explorer and Special Client Software

1xRS485, 2 × USB,  1xRJ45(10M/100M/1000M adaptive Ethernet interface)

4 SATA Hard Disk Interface

Backup: USB2.0 (such as U disk, USB Drive) and network

Support remote view by Mobilephone (iPhone, iPad, Android Phone)

Dimensions (L×W×H): 375*220*55(mm)

Weight: 3.5kg
